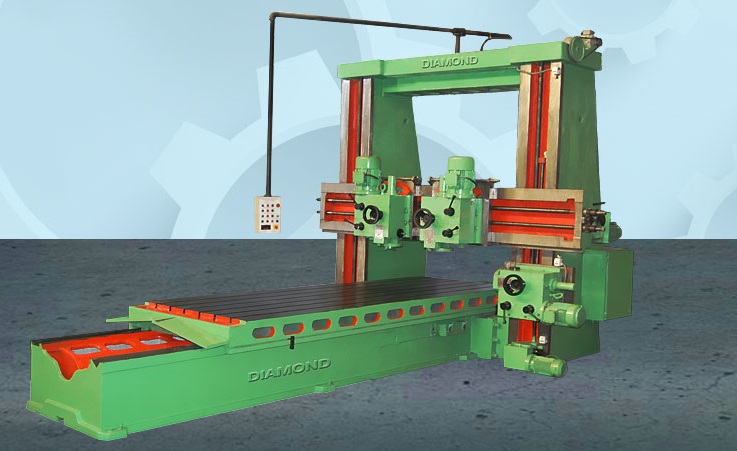

Plano Miller Machine
We present a wide range of inexplicable quality Plano Miller Machines that is available in various specifications. Our Double Column Plano Miller Machine is extensively used in heavy industries for various purposes. Fabricated with premium quality raw materials, our Double Column Plano Miller Machine is rugged. Our Plano Miller Machine is technically advanced machine that has high machining capacity. Being a heavy duty and high speed machine, it provides excellent performance even in extreme conditions. Our plano milling machine is a user friendly machine that needs low maintenance and helps us to be leaders among Lathe Plano Miller Machine Suppliers in Punjab, India.
Features
- Inexplicable Quality
- Highly durable
- Made from premium quality raw materials
- Heavy duty with high speed
- User friendly
- Low maintenance
- Excellent performance
Technical Specification
- Capacity 1200 – 2400
- Distance between T-slots – 127 tp 198
- Made from premium quality raw materials
- Cutting Feed – 30 ~ 500
- Vertical Crossrail - 1200 to 1800
| Model | Units | SPM3 | SPM4 | SPM5 | SPM6 | SPM15 | SPM10 | SPM15 |
|---|
| Capacity | ||||||||
| Max. Job Length | mm | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 15000 |
| Max. Job Width | mm | - | - | - | 1000-5000 | - | - | - |
| Max. Job Height | mm | - | - | - | 1000-5000 | - | - | - |
| Table | ||||||||
| Length | mm | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 15000 |
| Width | mm | - | - | - | 800-3000 | - | - | - |
| Height | mm | - | - | - | 800-3000 | - | - | - |
| BED LENGTH | mm | 6000 | 8000 | 10000 | 12000 | 16000 | 20000 | 30000 |
| MILLING HEAD | ||||||||
| No. of Speeds | - | - | - | - | 6 - 12 | - | - | - |
| Range of Speeds | - | - | - | - | 50 -500 | - | - | - |
| Motor Power | H.P. | - | - | - | 5-7.5-10-15-20 | - | - | - |
| No. of Cross Feeds | - | - | - | - | 3 - 6 | - | - | - |
| Table Feed Motor | - | - | - | - | 5 - 50 | - | - | - |
| Cross Slide Lift Motor | - | - | - | - | 2 -7.5 | - | - | - |
